Easton Cycling

WHATEVER YOU RIDE FOR

Easton Cycling has been developing high-quality components for cycling since 1984 - with a clear focus on technical innovation and the targeted use of modern materials. The range includes high-performance products for gravel, all-road, race and cyclocross, designed for use in UCI World Cups, local races and international gravel events.

Highlights

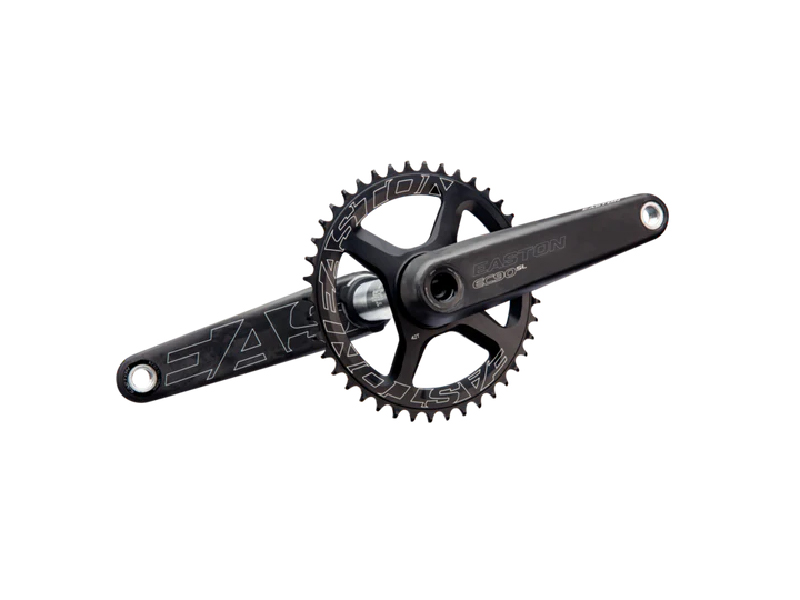

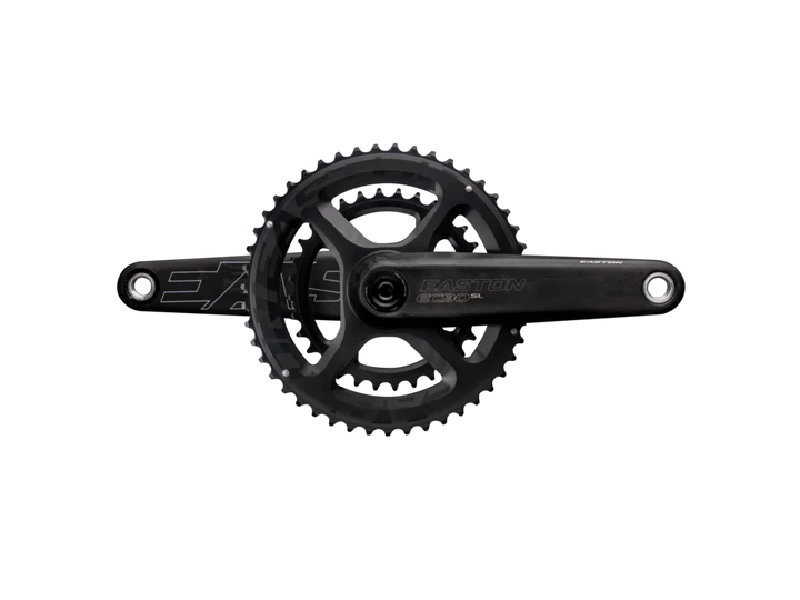

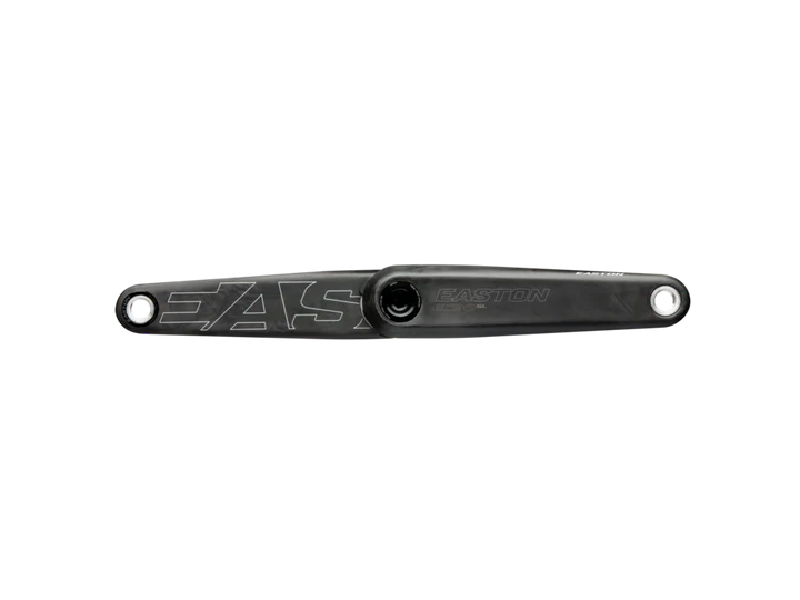

EC90 ALX crankset

Details

Lightweight, high perfomance Carbon crankset for gravel and all road

Material: optimized EC90 Carbon layup with patented pedal insert built

Crankarm protection with cover made from Stainless steel

New Lite-Spline (LS) CINCH interface with shortened teeth

Axle-compatibility: LS Standard axle for Shimano Road, SRAM 1x and 2x drivetrains and EA13; LS wide axle for Shimano GRX and Cues

Axle length: 125, 130mm

Q-factor: 150mm (w/ LS Standard axle)

Axle Diameter: 30mm (CINCH)

Axle, chainrings and spider sold seperately

Chainring Options: 1x: 38, 40, 42, 44T. (optimized for Shimano and SRAM flattop 12x); 2x: 46/36T., 47/32T. and 46/30T. SRAM AX Gravel

Lengths: 160, 165, 170, 172.5, 175mm

Max. System Rating: 121kg

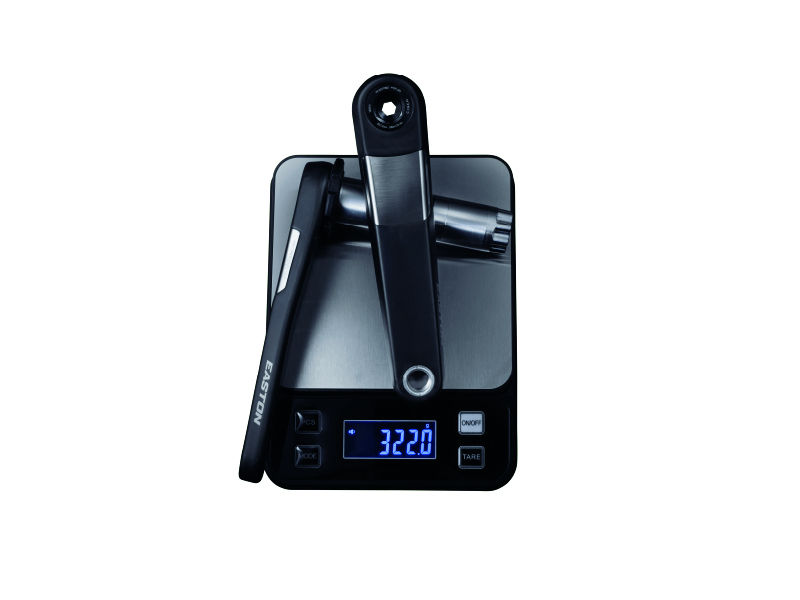

Weight: 329g (170mm w/ LS Standard Axle)

MSRP: 399.00€

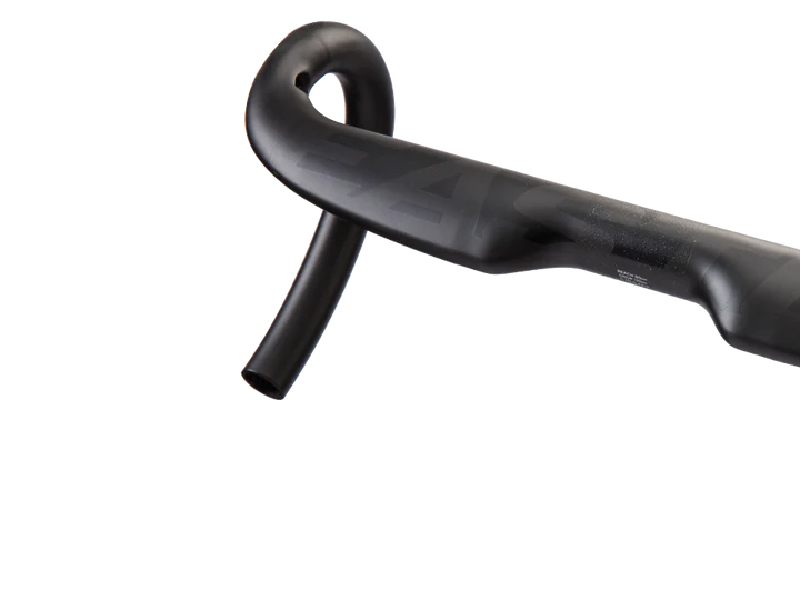

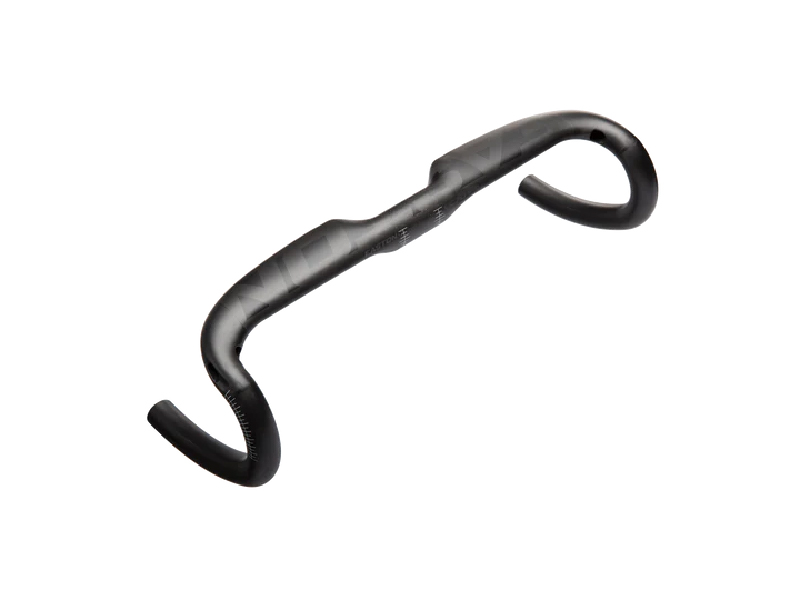

EC70 AERO handlebar

Details

Aerodynamic carbon handlebar for road bike and triathlon

Material: carbon

Application: road bike and triathlon

Handlebar clamp: 31.8 mm

Handlebar widths: 400 mm, 420 mm, 440 mm (center-center)

Reach: 80 mm

Drop: 125 mm

Flare: 4°

Weight: approx. 255 g (420 mm)

MSRP: 269.95 €

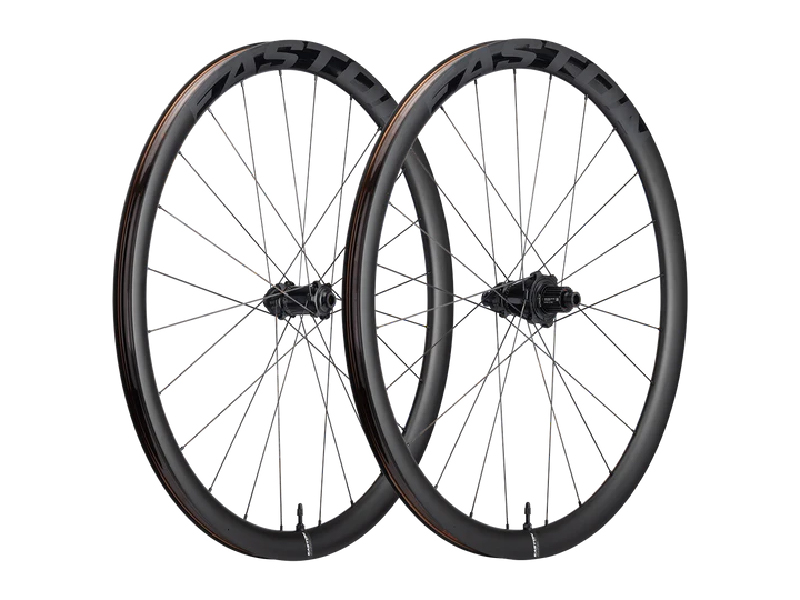

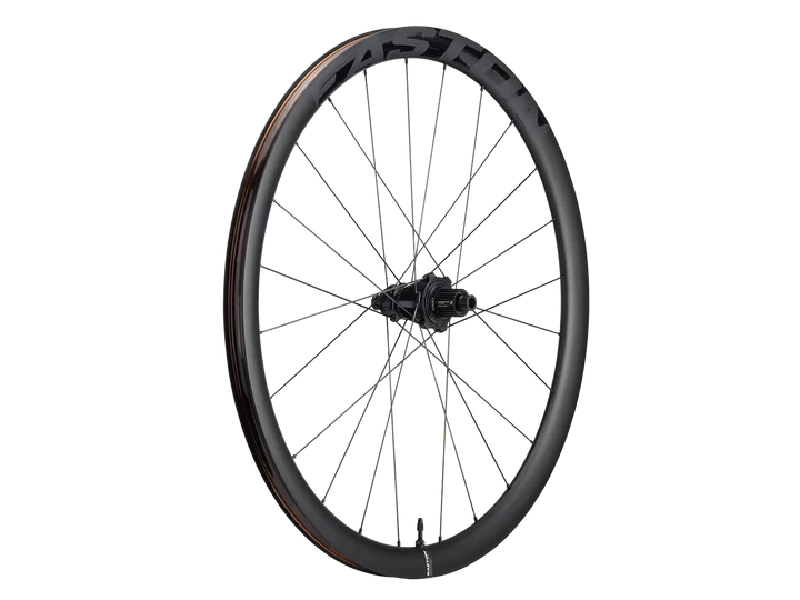

EC90 ALX wheelset

Details

High-quality carbon wheelset for demanding gravel and all-road adventures

Range of use: all-road and gravel

Rim depth: 36 mm for aerodynamic efficiency

Internal width: 24 mm, optimized for tire widths from 35-45 mm

Rim material: carbon with hookless tubeless design

Spokes: 24 Sapim CX-Ray per wheel

Hubs: Easton Vault with 60 engagement points and Centerlock brake rotor mount

Freehub options: Shimano HG, SRAM XDR, Campagnolo

Axle compatibility: Front 12x100 mm, rear 12x142 mm thru-axles

Warranty: Lifetime warranty, including crash damage protection

Weight: approx. 1,495 g per wheelset

MSRP: 1,445.00 € per wheelset


Media

Katalog

Video
