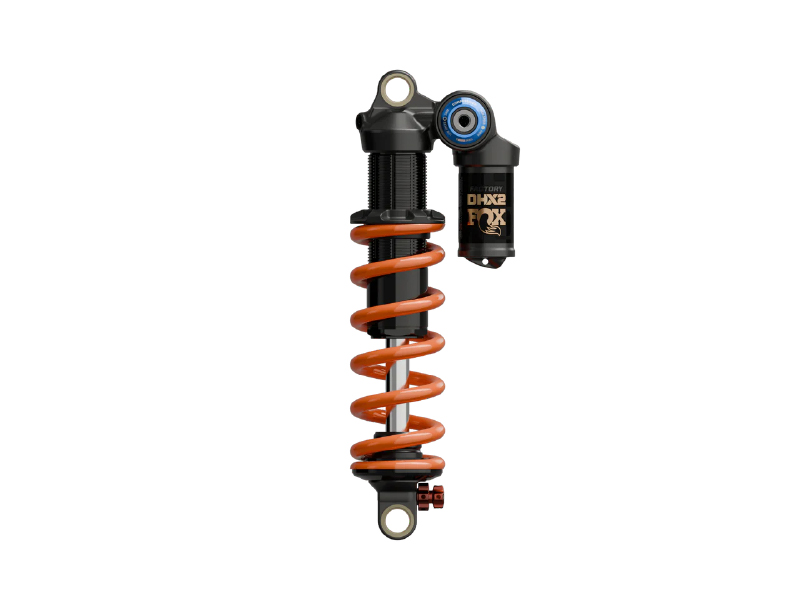

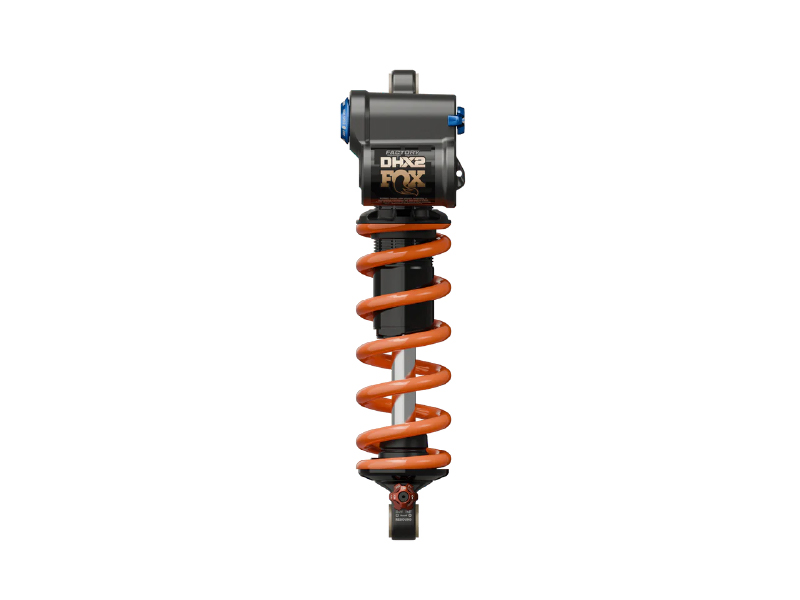

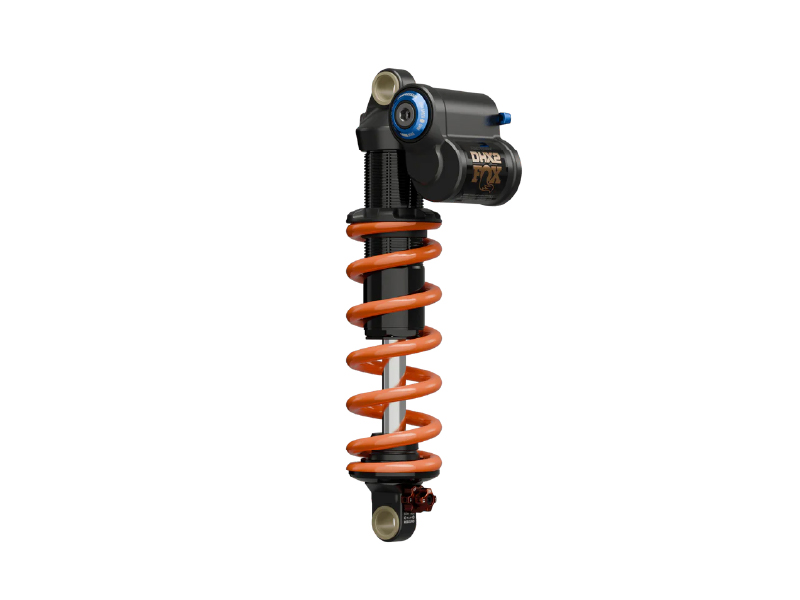

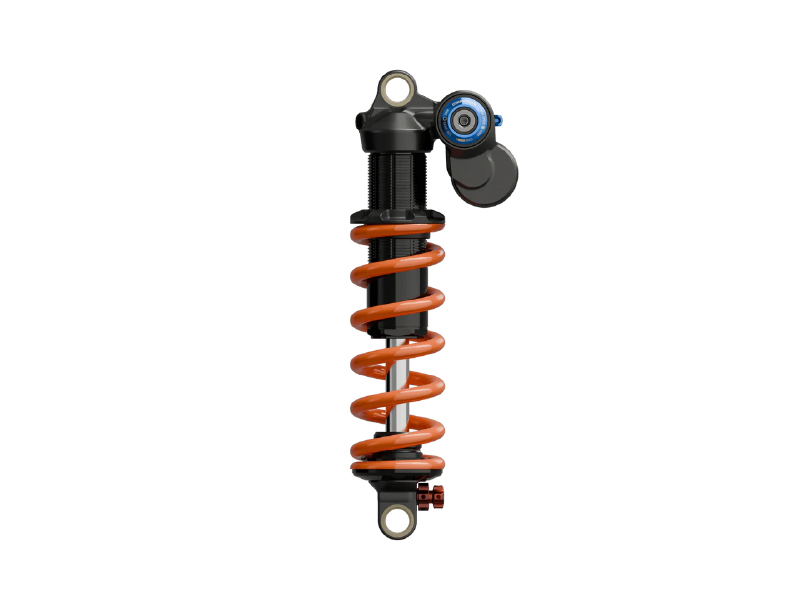

High-end spring shock for downhill, enduro and bike park

Completely revised damper design for improved performance

New damper rod with ultra-hard coating for reduced friction

Improved bladder reservoir for more consistent damping behavior

External adjuster with clear click detent for precise setup

Friction-optimized seals and internal pistons for more sensitivity

High-flow main piston for faster oil circulation and better control

Adjustment options:

• Spring preload (steel spring)

• High-speed compression

• Low-speed compression

• High-speed rebound

• Low-speed rebound

Spring available separately

Compatible with trunnion and standard mount

Weight: approx. 480-510 g (without spring, depending on size and mount)

MSRP: 769.00 € (depending on mount variant and size)

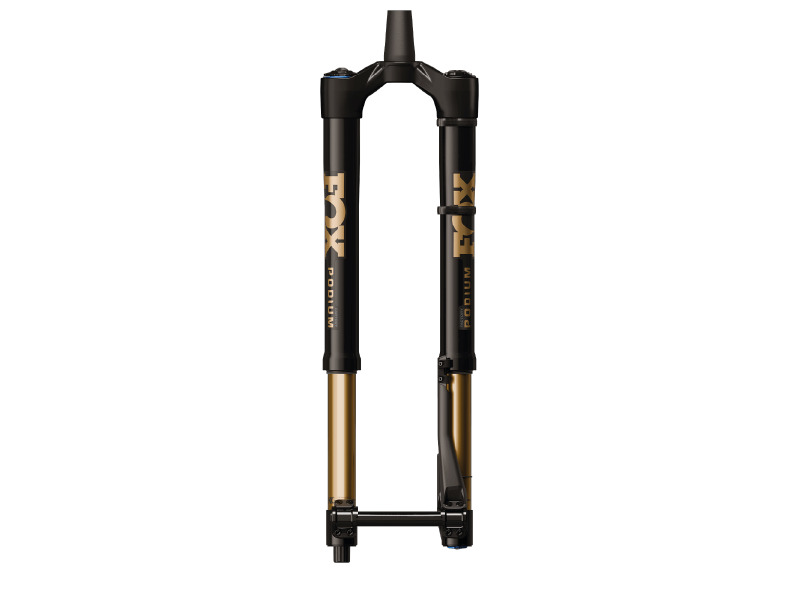

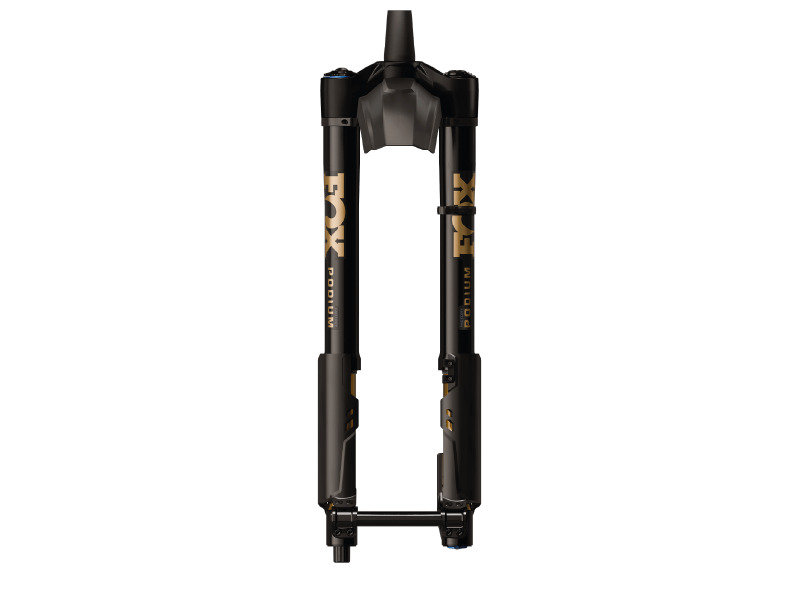

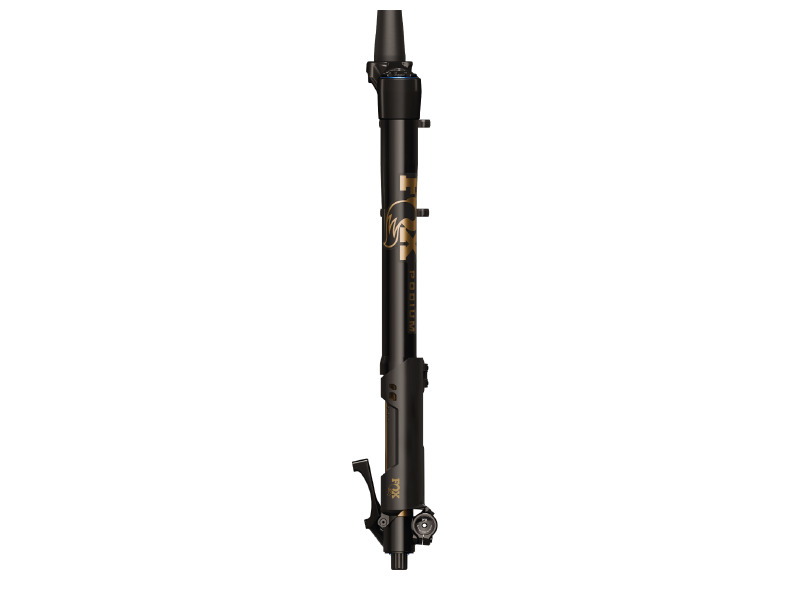

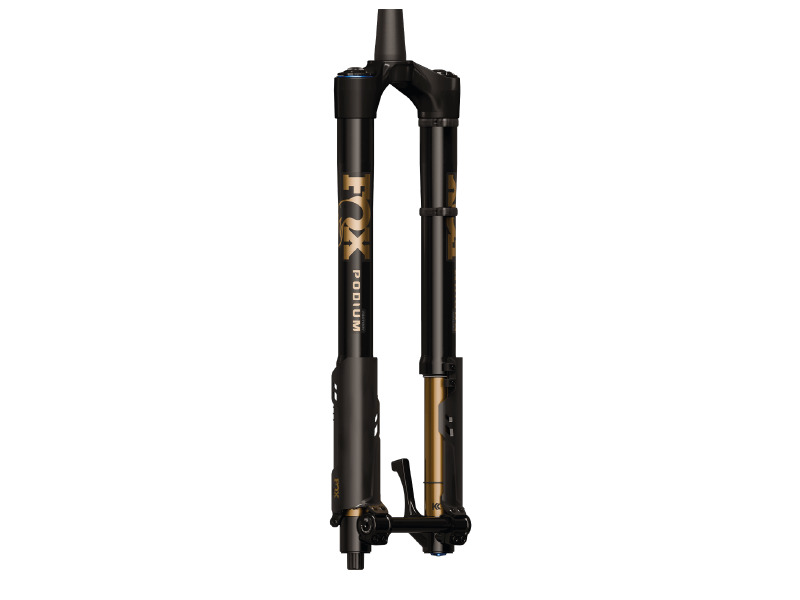

High-end Upside-down fork for enduro and e-MTB

Upside-down construction with oversized uppers and oversized crown for less unsprung mass

Travel: 160mm, 170mm

Wheel size: 29in

Steerer: 1 1/8-1.5 tapered

Stanchion: 38mm with low-friction Kashima coating

Upper tubes: 47mm

Bushing overlap: 175mm (+32% compared to Model 38 and +7% compared to Model 40)

Custom tuned GRIP X2 damper with additional compression damping and adjusted rebound damping

New FLOAT EVOL GlideCore air spring with floating piston that’s axially aligned to the stanchion for better responsiveness and reduced wear

Shorter Bushing to axle for reduced leverage and smoother responsiveness

Constantly lubricated internal seals by gravity and reduced debris deposits on the seals

Offset: 44mm

Axle: 20x110mm floating steel axle

Rotor size: 200mm direct Post Mount, 230mm max

Damper controls:

• High speed compression

• Low speed compression

• High speed rebound

• Low speed rebound

• Air volume

• Pressure bleeders

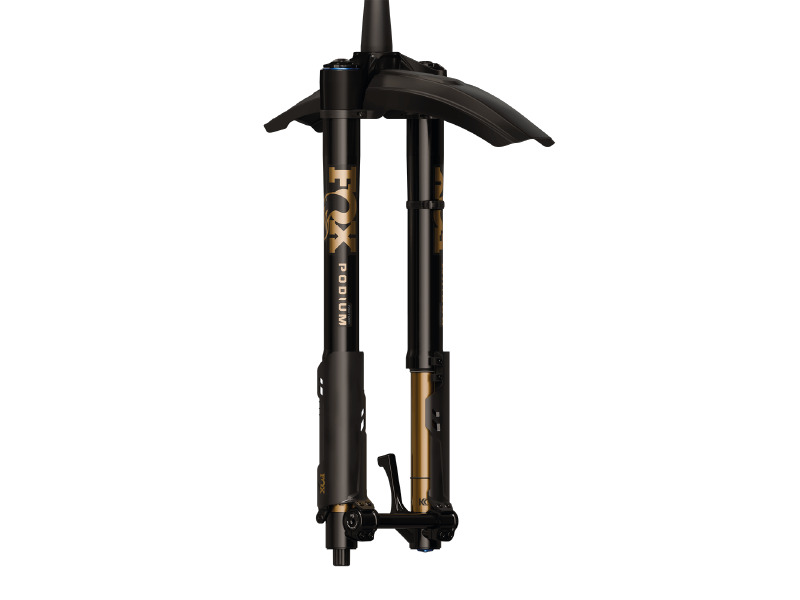

FOX Mudguard sold separately

Weight: from 2.695g

MSRP: 2399.00€

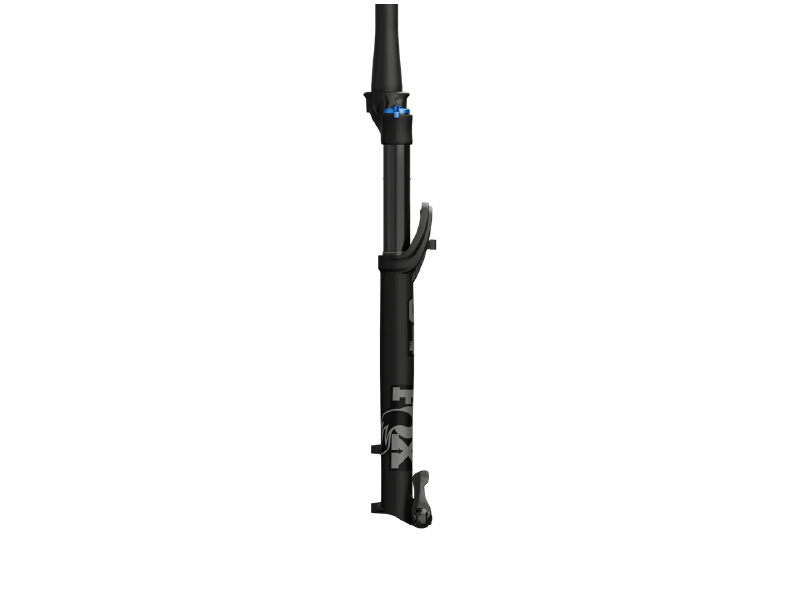

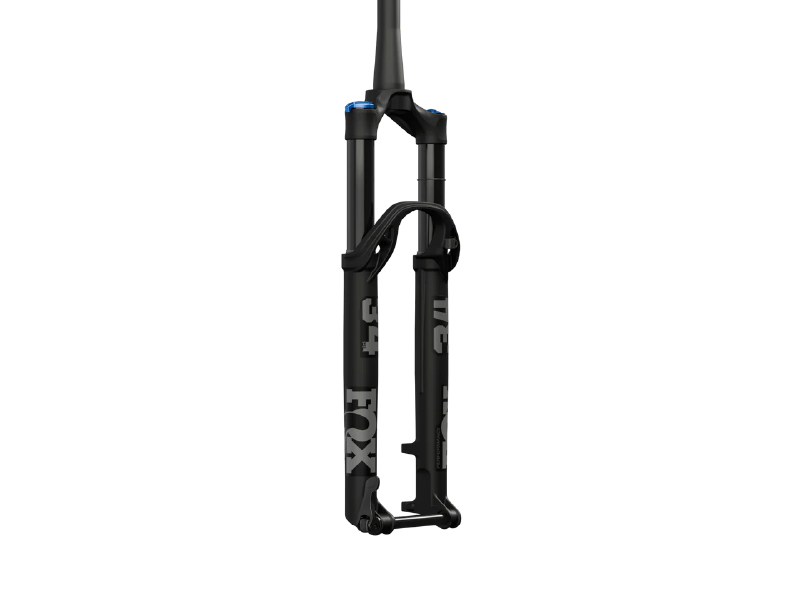

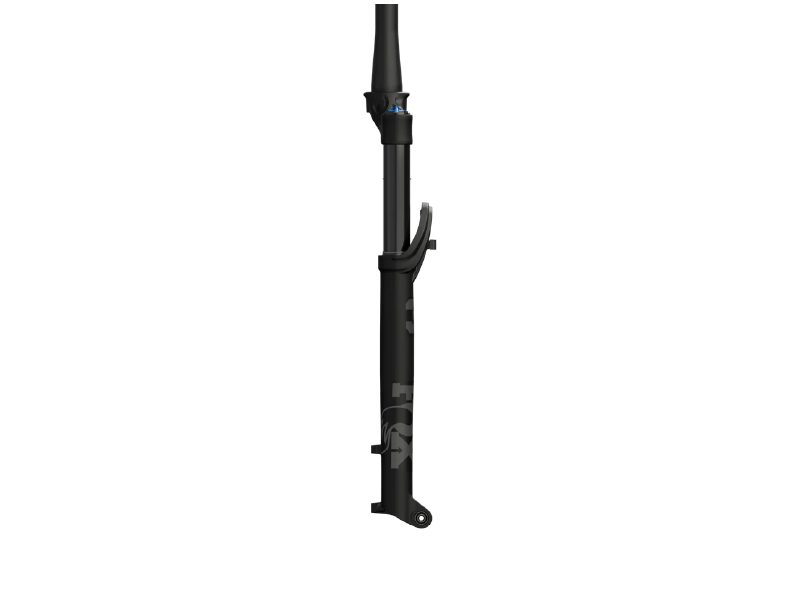

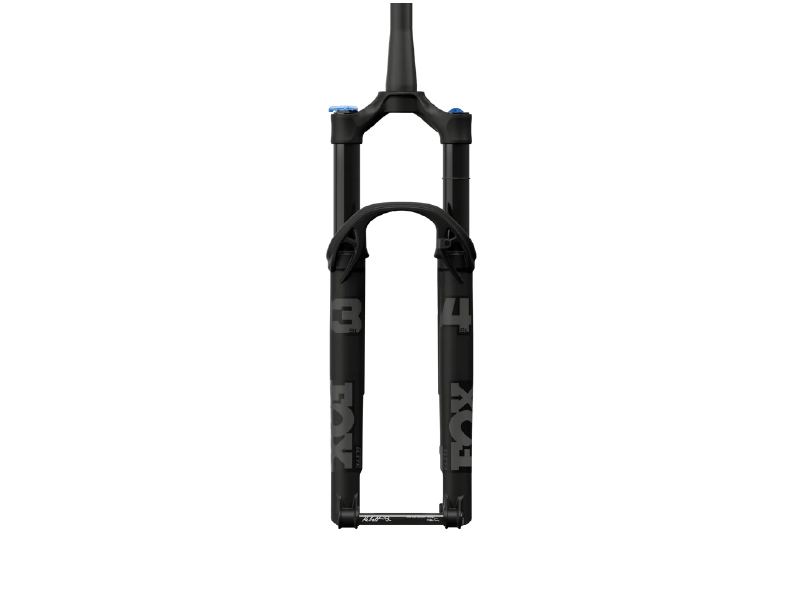

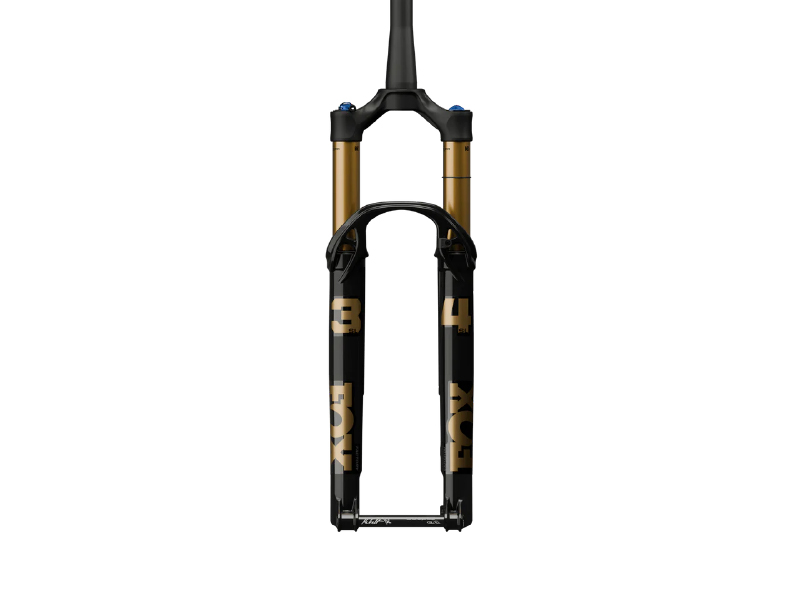

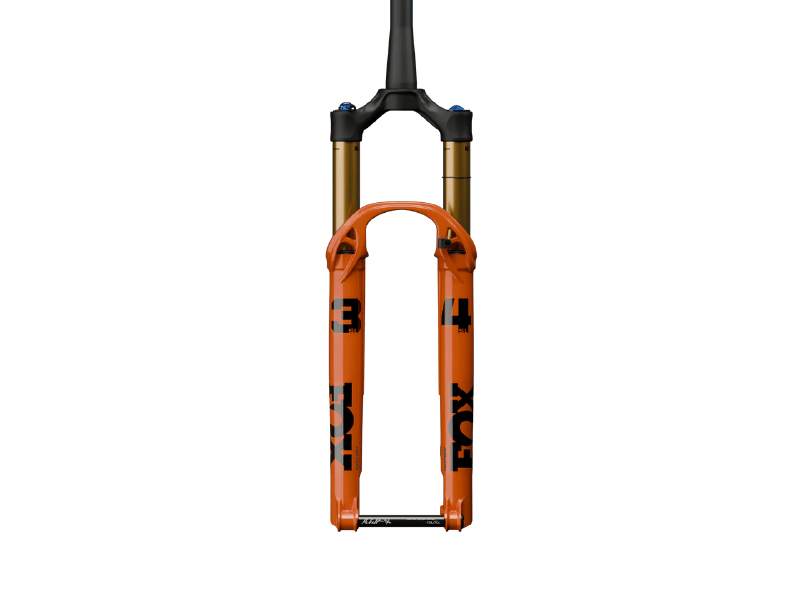

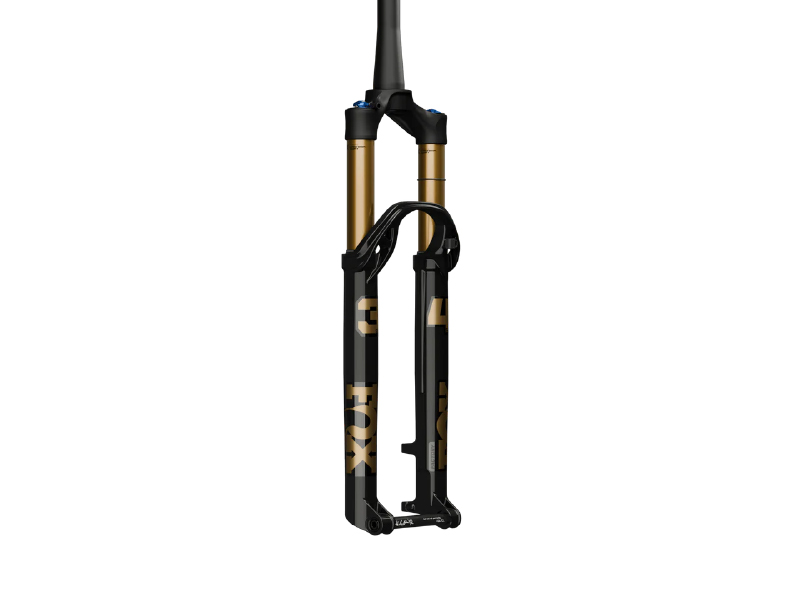

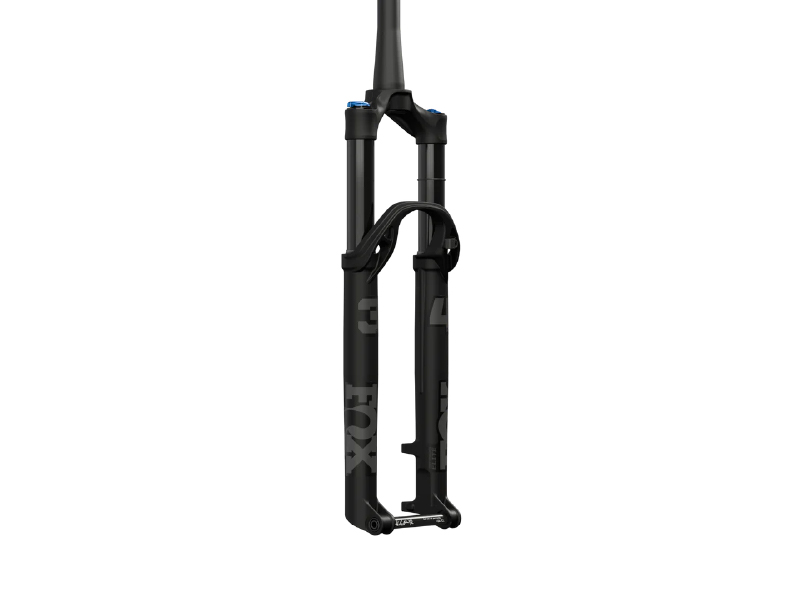

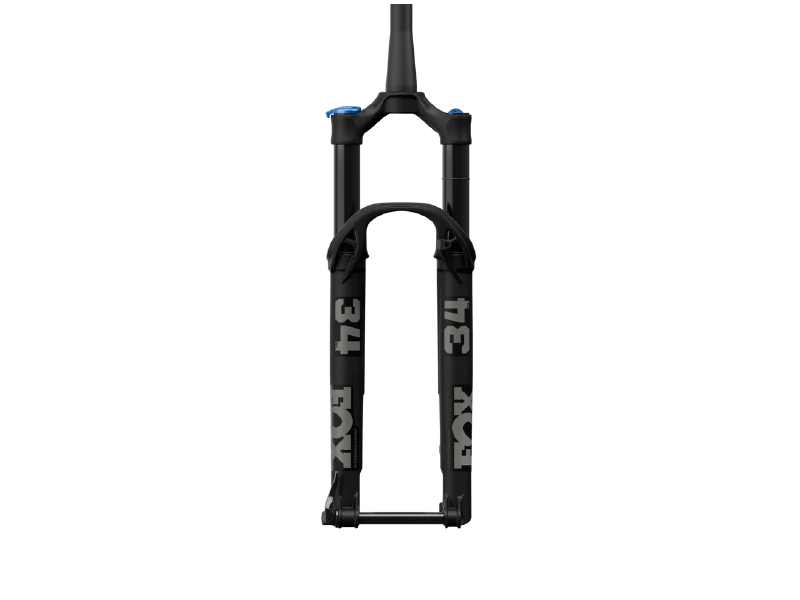

High-end suspension fork for cross-country and downcountry use

Extremely lightweight design for efficient climbing and fast acceleration

Redesigned triple clamp with 17 % higher torsional stiffness

20 % more bushing overlap for smoother performance

GRIP SL damper cartridge with optimized platform for XC racing

FLOAT EVOL air spring for sensitive response

Kabolt SL thru axle for maximum weight savings

Available with 120 mm and 130 mm travel (29 inch)

Adjustment options:

• 3-position compression (Open, Medium, Firm)

• 17-position rebound adjustment - Optionally compatible with Twin Stick Remote Lockout

Weight: approx. 1,475 g

MSRP: 869.00€ (depending on model)
